PROMO Alat Ukur /survey TOTAL STATION TOPCON GTS 255 5''
SOLUSI ALAT SURVEY
Jual, Sewa, Service dan Kalibrasi alat Survey dan Pemetaan Support Wilayah Seluruh Indonesia
Office : Pakuwon Center Lt. 23 Jl. Embong Malang No 1-5 Surabaya
Workshop : Jl. Raya Ahmad Yani, Griya Permata Gedangan Blok C1 No.27 - Sidoarjo
Hotline : 081 323 770 626 ( Telkomsel ) / 085939142000 (XL)
 |

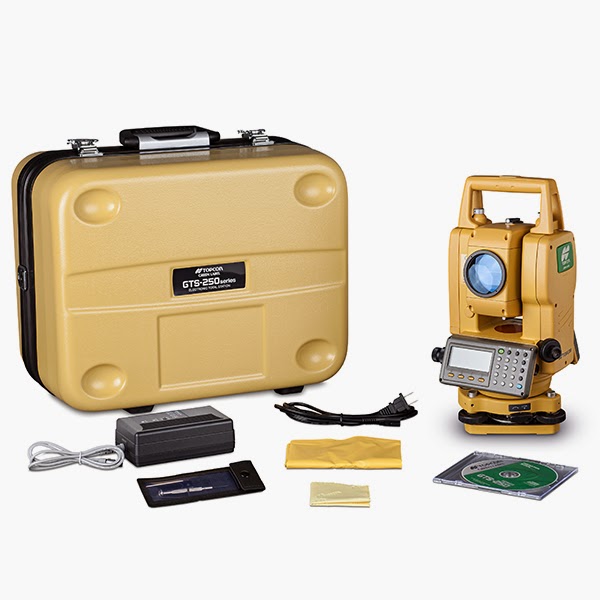

| Alat Survey Topcon GTS 225 |
Spesifikasi alat ukur/alat survey Total Station Topcon GTS 255:
Telescope
Length 150 Millimeters
Objective Lens Diameter 45mm (EDM:50mm)
Magnification 30x
Image Erect
Field of View 1°30
Resolve Power 3 "
Min. Focus Distance 1.3 meters
Measurement Range
1 Prism 6560 ft, 2000 meters
3 Prism 8856 ft, 2700 meters
Measuring Accuracy
Prism Mode ±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method Absolute Reading
Detection 2 horizontal, 1 vertical
Minimum reading 5”/1”, 1/5 mgon
Tilt Correction
Type Automatic Vertical and Horizontal compensator
Method Liquid surface reflective profile sensor reading type
Compensating Range ±3'
Correction Unit 1 arc sec, N/A
Computer Unit
Display 2 screen, dot matrix graphic LCD display
Power
Approximate battery life 9 hours including distance measurement , 40 Angle measurement only
Telescope
Length 150 Millimeters
Objective Lens Diameter 45mm (EDM:50mm)
Magnification 30x
Image Erect
Field of View 1°30
Resolve Power 3 "
Min. Focus Distance 1.3 meters
Measurement Range
1 Prism 6560 ft, 2000 meters
3 Prism 8856 ft, 2700 meters
Measuring Accuracy
Prism Mode ±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method Absolute Reading
Detection 2 horizontal, 1 vertical
Minimum reading 5”/1”, 1/5 mgon
Tilt Correction
Type Automatic Vertical and Horizontal compensator
Method Liquid surface reflective profile sensor reading type
Compensating Range ±3'
Correction Unit 1 arc sec, N/A
Computer Unit
Display 2 screen, dot matrix graphic LCD display
Power
Approximate battery life 9 hours including distance measurement , 40 Angle measurement only
 |
| Alat Ukur Topcon Murah Di surabaya |
KELENGKAPAN :
• 2 x Aluminium Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prisma
• 1 x Cable Data
• 1 x Software Data
• 2 x Battery
• 10 x Reflective Sheet
kami menyediakan alat – alat survey, pemetaan dan geologi. Untuk keperluan :
• Kontruksi
• Telekomunikasi
• Kehutanan
• Pertambangan
• Kelauatan
Produk – Produk yang kami tawarkan seperti :
Surveying Instrument & Mapping Equipment
Total Station :
Total Station Topcon OS 101, 102, 103, 105, 107
Total Station Topcon ES 101, 102, 103, 105, 107
Total Station Topcon GTS 102N, 105N, 255N
Total Station Sokkia FX 101, 102, 103, 105
Total Station Sokkia CX 101, 102, 103, 105
Total Station Sokkia SET 02N, 05N
Total Station Nikon DTM 322, 352, 362
Total Station Nikon Nivo 3m, 5m, 3c, 5c
Digital Theodolite :
Digital Theodolite Topcon DT 205, 205L, 209, 209L
Digital Theodolite Sokkia DT 540, 740, 940
Digital Theodolite Nikon NE 100, 101, 102, 103
Digital Theodolite Ruide ET 02, 05
Digital Theodolite South ET 02, 05
Digital Theodolite Minds CDT 02, 05
Automatic Level :
Automatic Level Sokkia B-20, B-30, B-40
Automatic Level Topcon AT-B2, AT-B3, AT-B4
Automatic Level Nikon AC2S, AX2S
GPS Navigasi / Maps :
GPSMAP Garmin 62S
GPSMAP Garmin 78S
GPS Garmin Etrex 10, 20, 30
GPS Garmin Montana 650
GPS Garmin Oregon 650
GPS Garmin 585 Echosunder
GPS Trimble Juno SB, SC, SD, 3D
Fishfinder, Rangefinder
Hypsometer Nikon Forestry Pro
Binoculars Nikon
Compass :
Compass Suunto KB-14
Clinometer Suunto PM-5
Tandem Suunto 360PC
Compass Geologi Brunton 5006, 5008, 5010
Battery Charger :
Battery Charger Topcon BT-32Q, BT-52QA, TBB-2, BDC 70
Battery Charger Sokkia BDC 25, BDC 35, BDC 46B, BDC 58, BDC 70
Battery Charger Nikon BC 65, BC 80
Battery Charger South NB-10A, NB-20, NB-10B, NB-20A
Charger :
Charger Topcon BC-20CR, BC-27CR, TBC-2, BC-G1C, BC-19B,
Charger Sokkia CDC 68, Dual Charger CDC 68
Charger Nikon Q-75E
Aksesoris :
Prisma Polygon Topcon, Sokkia, Nikon, Leica
Prisma Single Topcon, Sokkia, Nikon, Leica
Alumunium Tripod Topcon, Sokkia, Nikon
Pole Stick Prisma Topcon, Sokkia, Nikon, Leica
Alat Survey & Alat Geologi Lainnya :
Meteran Stilon Yamayo 50M
Meteran Tajima 100M
Binocular Nikon
Leica Disto D3ABT
Leica D210
Palu Etswing
Plagging Tape
Diagonal Eyepiece
Reflective Sheet
Handly Talky ICOM V-80
Service Center Survey Equipment:
Service & Kalibrasi Total Station:
Sokkia/Nikon/Sokkia/Leica/South/Horizon/Ruide
Service & Kalibrasi Theodolite:
Sokkia/Nikon/Sokkia/Leica/South/Horizon/Ruide
Service & Kalibrasi Automatic Level:
Sokkia/Nikon/Sokkia/Leica/South/Horizon/Ruide
Segeralah anda mengubungi kami yang senantiasa siap dalam memberikan pelayanan terbaik dan produk yang bermutu guna menunjang kebutuhan dan keberhasilan pekerjaan pengukuran anda.
Kami tidak hanya sekedar menjual produk tetapi dukungan teknis untuk setiap produk yang kami jual. Dengan dukungan tim teknisi kami, kami berusaha memberikan pelayanan terbaik untuk customer.
Kami melayani Jual, Sewa, Service dan Kalibrasi alat Survey dan Pemetaan
#promototalstation
#topcon
#topconsurabaya
#alatsurvey
• 2 x Aluminium Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prisma
• 1 x Cable Data
• 1 x Software Data
• 2 x Battery
• 10 x Reflective Sheet
kami menyediakan alat – alat survey, pemetaan dan geologi. Untuk keperluan :
• Kontruksi
• Telekomunikasi
• Kehutanan
• Pertambangan
• Kelauatan
Produk – Produk yang kami tawarkan seperti :
Surveying Instrument & Mapping Equipment
Total Station :
Total Station Topcon OS 101, 102, 103, 105, 107
Total Station Topcon ES 101, 102, 103, 105, 107
Total Station Topcon GTS 102N, 105N, 255N
Total Station Sokkia FX 101, 102, 103, 105
Total Station Sokkia CX 101, 102, 103, 105
Total Station Sokkia SET 02N, 05N
Total Station Nikon DTM 322, 352, 362
Total Station Nikon Nivo 3m, 5m, 3c, 5c
Digital Theodolite :
Digital Theodolite Topcon DT 205, 205L, 209, 209L
Digital Theodolite Sokkia DT 540, 740, 940
Digital Theodolite Nikon NE 100, 101, 102, 103
Digital Theodolite Ruide ET 02, 05
Digital Theodolite South ET 02, 05
Digital Theodolite Minds CDT 02, 05
Automatic Level :
Automatic Level Sokkia B-20, B-30, B-40
Automatic Level Topcon AT-B2, AT-B3, AT-B4
Automatic Level Nikon AC2S, AX2S
GPS Navigasi / Maps :
GPSMAP Garmin 62S
GPSMAP Garmin 78S
GPS Garmin Etrex 10, 20, 30
GPS Garmin Montana 650
GPS Garmin Oregon 650
GPS Garmin 585 Echosunder
GPS Trimble Juno SB, SC, SD, 3D
Fishfinder, Rangefinder
Hypsometer Nikon Forestry Pro
Binoculars Nikon
Compass :
Compass Suunto KB-14
Clinometer Suunto PM-5
Tandem Suunto 360PC
Compass Geologi Brunton 5006, 5008, 5010
Battery Charger :
Battery Charger Topcon BT-32Q, BT-52QA, TBB-2, BDC 70
Battery Charger Sokkia BDC 25, BDC 35, BDC 46B, BDC 58, BDC 70
Battery Charger Nikon BC 65, BC 80
Battery Charger South NB-10A, NB-20, NB-10B, NB-20A
Charger :
Charger Topcon BC-20CR, BC-27CR, TBC-2, BC-G1C, BC-19B,
Charger Sokkia CDC 68, Dual Charger CDC 68
Charger Nikon Q-75E
Aksesoris :
Prisma Polygon Topcon, Sokkia, Nikon, Leica
Prisma Single Topcon, Sokkia, Nikon, Leica
Alumunium Tripod Topcon, Sokkia, Nikon
Pole Stick Prisma Topcon, Sokkia, Nikon, Leica
Alat Survey & Alat Geologi Lainnya :
Meteran Stilon Yamayo 50M
Meteran Tajima 100M
Binocular Nikon
Leica Disto D3ABT
Leica D210
Palu Etswing
Plagging Tape
Diagonal Eyepiece
Reflective Sheet
Handly Talky ICOM V-80
Service Center Survey Equipment:
Service & Kalibrasi Total Station:
Sokkia/Nikon/Sokkia/Leica/South/Horizon/Ruide
Service & Kalibrasi Theodolite:
Sokkia/Nikon/Sokkia/Leica/South/Horizon/Ruide
Service & Kalibrasi Automatic Level:
Sokkia/Nikon/Sokkia/Leica/South/Horizon/Ruide
Segeralah anda mengubungi kami yang senantiasa siap dalam memberikan pelayanan terbaik dan produk yang bermutu guna menunjang kebutuhan dan keberhasilan pekerjaan pengukuran anda.
Kami tidak hanya sekedar menjual produk tetapi dukungan teknis untuk setiap produk yang kami jual. Dengan dukungan tim teknisi kami, kami berusaha memberikan pelayanan terbaik untuk customer.
Kami melayani Jual, Sewa, Service dan Kalibrasi alat Survey dan Pemetaan
#promototalstation
#topcon
#topconsurabaya
#alatsurvey
